Battery Storage for EV Charging: What Your Site Data Must Show
Two California field projects explain what charger ratings, measured grid demand, uptime and storage-use data can—and cannot—tell a battery-storage buyer.
Battery storage for EV charging should be evaluated using the charging service delivered, the electricity drawn at the meter and the battery's recovery between busy periods. Two California field projects show why a charger rating alone cannot answer those questions.
These are third-party public case studies, not HUA-X project references. The analysis below uses reported operational results and identifies the information a buyer would still need before specifying another site.
A recent field case: six chargers, three sites
Eneridge's May 2026 report describes two 150 kW battery-integrated chargers at each of three California sites, sharing one utility meter per site. Its reporting window was December 27, 2024–December 26, 2025. Across the six units, it recorded 7,605 sessions and more than 235,000 kWh dispensed. Reported average peak charging power was approximately 89–104 kW per charger. [1]

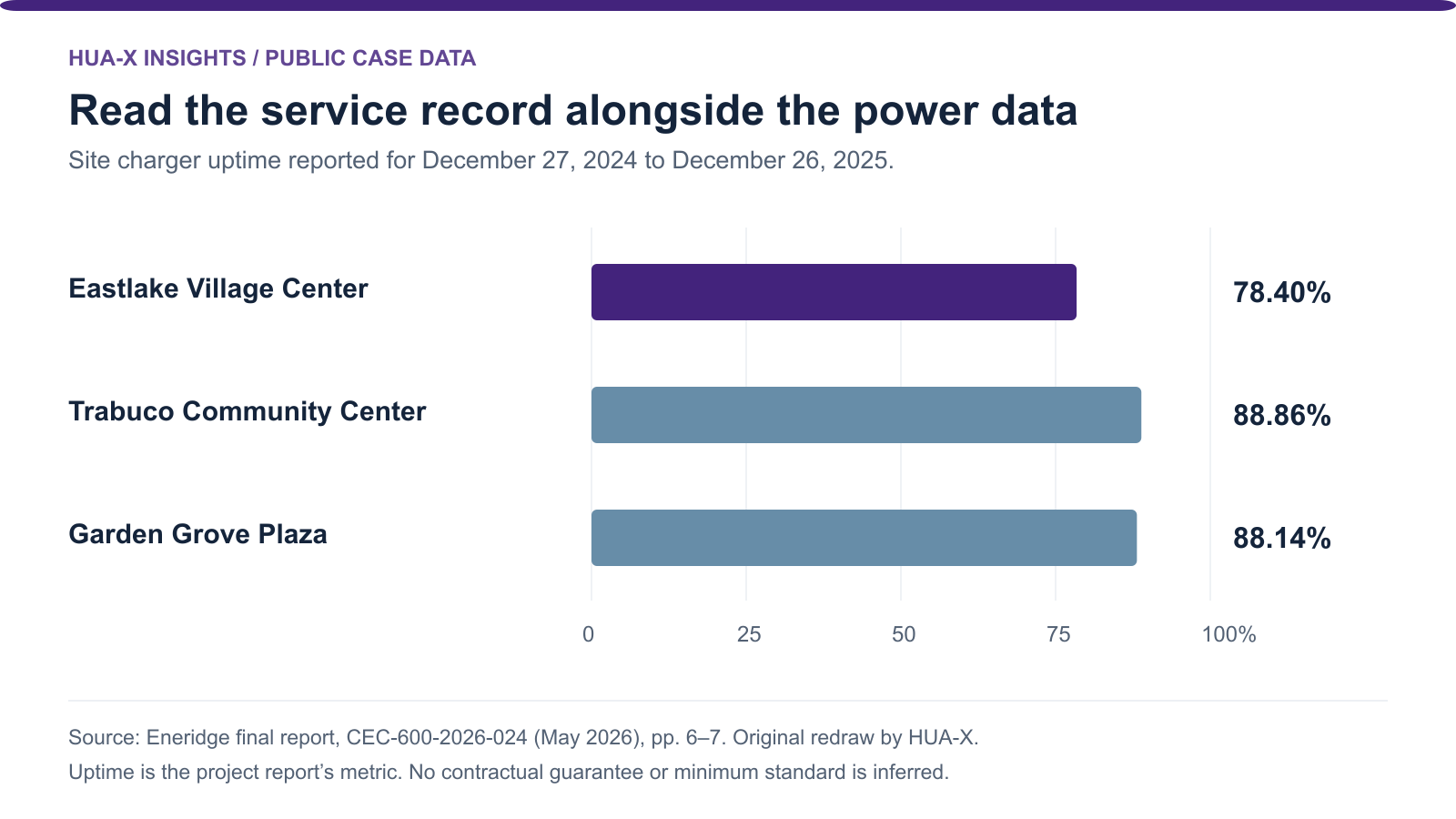

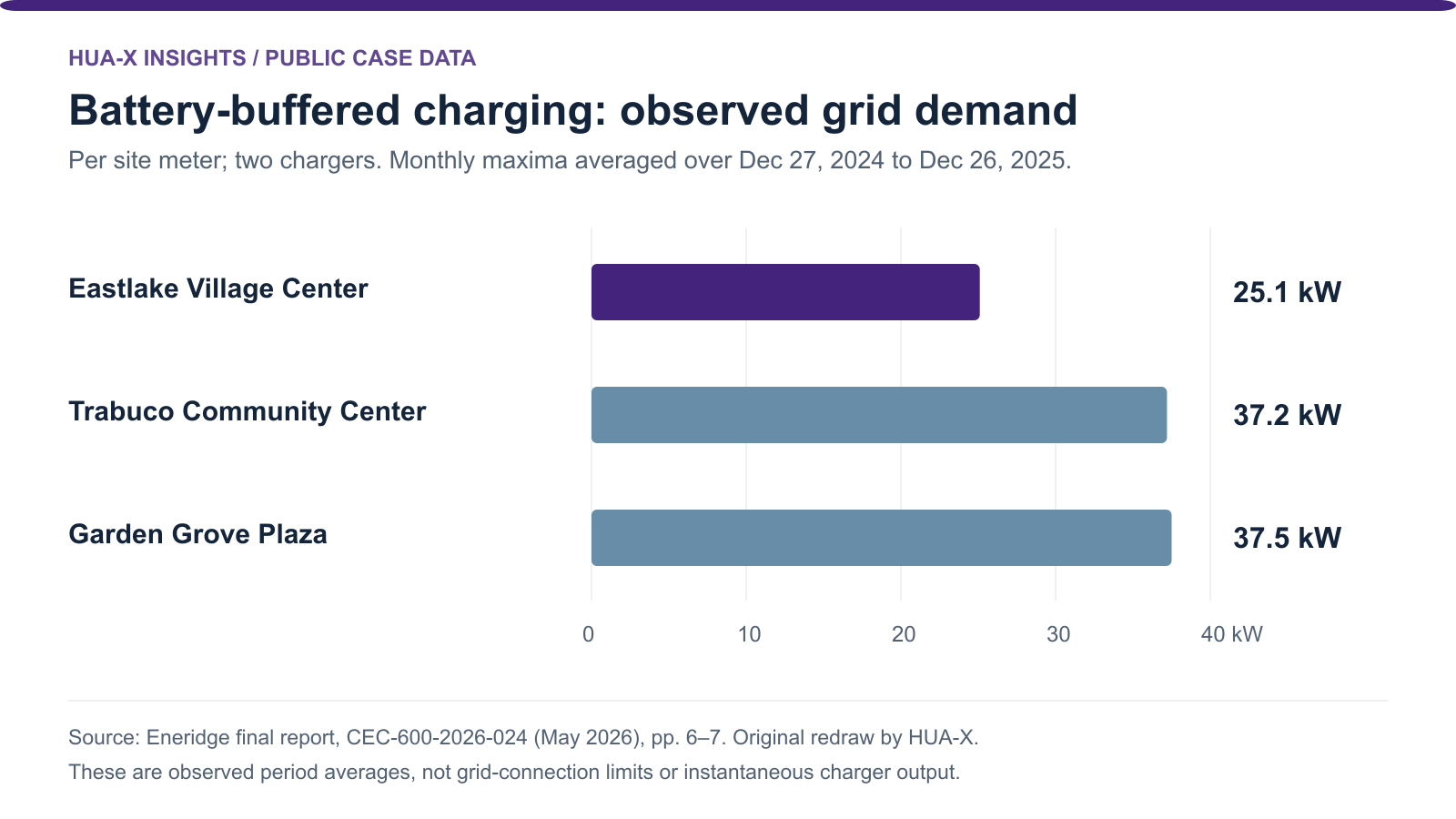

| Site | Average of monthly maximum utility demand | Reported uptime |
|---|---|---|
| Eastlake Village Center, Chula Vista | 25.1 kW | 78.40% |
| Trabuco Community Center, Irvine | 37.2 kW | 88.86% |
| Garden Grove Plaza, Garden Grove | 37.5 kW | 88.14% |
The report does not disclose battery capacity, a synchronized charger/meter trace or battery recharge curves. It also records the manufacturer's mid-2024 bankruptcy and subsequent use of third-party maintenance. [1]
Read the power figures without creating a false saving
For procurement, put each number in its proper column: installed output rating, observed charging statistic, utility demand statistic and service availability. They answer different questions.
Adding two charger nameplates does not create an observed load. Nor can the table's demand averages establish the largest grid draw on a particular date. Comparing those unlike measures and calling the difference a percentage demand reduction would produce a result that this evidence cannot support.
A valid demand-reduction calculation needs an explicit counterfactual, aligned timestamps and the relevant utility billing interval. A cost calculation also needs the applicable tariff and billing rules. The reported charging energy is not an electricity bill, and charger uptime is not proof that every arriving driver received the energy requested.
Our procurement takeaway is to request both the electrical record and the service record. A design that limits import still needs to show how it handles simultaneous arrivals, depleted storage and unavailable chargers. Treat those as acceptance questions for the proposed system.
A second field case: installed storage versus energy actually supplied
A separate Monterey Park project used four 50 kW chargers and a 48 kW / 110 kWh second-life battery. Its June 2024 report states that, from April through December 2020, stationary storage supplied 464 kWh out of 5,945 kWh used for vehicle charging—about 7.8%. The project also ran economic simulations using additional charging data; those modeled savings are not measured bill reductions at the demonstration site. [2, printed page 2]
The useful lesson is the distinction between inventory and operation. Battery nameplate capacity describes installed equipment; metered energy describes how it was used over a stated period. Neither number alone establishes the storage size for a bus depot, a shopping center or a highway charging station. The sites' data should remain separate.
Build a site-data package that can answer the missing questions
DOE's fleet guidance recommends working with the utility early and plotting vehicle electricity needs over time. It also discusses scheduled charging, separate tracking of charging consumption and maintenance responsibilities. Those inputs support a comparison of managed charging, storage and electrical upgrades. [3]
For a project review, HUA-X recommends the following working record. These are proposed procurement inputs, not additional measurements from the two case studies.
| Record to request | Decision it should support |
|---|---|
| Timestamped site-meter demand, time zone, interval length and missing-data flags | Find coincident load and the periods that actually challenge the import limit. |
| Charger AC input and vehicle-delivered DC energy, identified separately | Avoid treating different electrical boundaries as interchangeable. |
| Session arrival, departure, energy delivered and requested service | Test whether postponing or limiting charging would affect operations. |
| Storage state of charge, charge/discharge power, alarms and recharge windows | Check the energy available before the next busy period. |
| Utility-confirmed connection limit, tariff and single-line diagram | Review the supply and billing constraints that apply to this site. |
| Charger availability, failed sessions and maintenance response | Evaluate the charging service alongside power management. |
Make recovery part of the operating requirement
For each measured busy period, compare the battery's starting state, energy delivered and time available to recharge before the next cluster of arrivals. Include conversion losses, auxiliaries, charging limits and coincident site demand in the project model. A daily energy total cannot reveal whether the battery recovered in time.
If these records are unavailable, retain the recharge result as unknown. Do not replace the missing timeline with the nameplate capacity or multiply a reported peak by an assumed duration. For a new station, mark the arrival schedule as a forecast and test alternative schedules separately from observed results.
The acceptance plan should state what happens when storage reaches its lower operating limit or a control connection fails: which chargers reduce power, what import limit applies and how the operator is informed. If outage charging is required, define that operating mode separately.
Turn the case evidence into a project-specific inquiry
Use the HUA-X EV charging application overview and BESS RFQ checklist to organize your next review. Supply the country, charging plan, connection information and available data period. Request the proposed system's net power, usable energy, interface requirements and documented operating conditions rather than assuming that a similar nominal capacity reproduces either case. [4][5]
These public reports provide questions and evidence boundaries for procurement. They do not establish a HUA-X product's performance, US compliance or suitability for either installation. A charging-site storage inquiry should keep those project-specific requirements attached to the proposal. [6]
